Wilson Sasha DAW Speakers
Drivers
The midrange and tweeters are the same units used in the WAMM Master Chronosonic, and an all-new crossover blends the entire recipe together

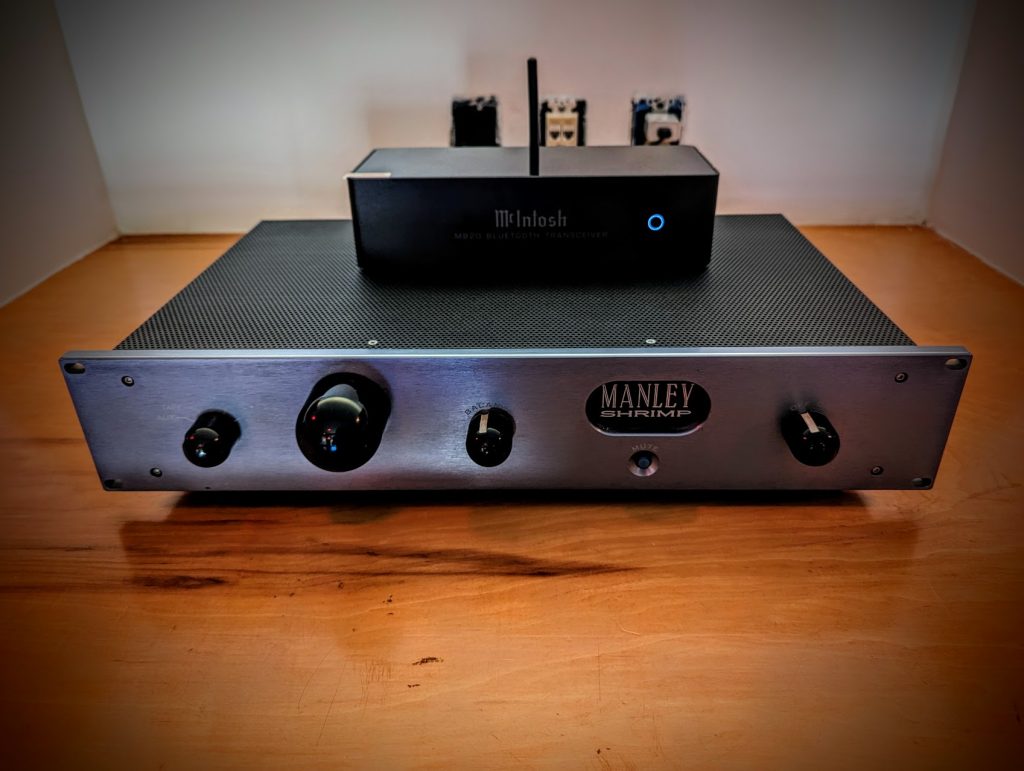

Manley Shrimp
Great Condition Manley Shrimp Tube Preamp
Very short, simple minimalist signal path. All-tube design. 2 x 12AT7 + 2 x 7044
Generous energy storage via large power supply capacitors for more impact in the bass.
No global feedback makes the Shrimp very fast sounding.
Non-inverting two-tube gain stage is direct-coupled for most pure signal path.
Cool White-follower output stage provides low 50 Ohm output impedance. This is much better than a boring plain ol’ cathode follower. The Shrimp can drive anything, not to worry.
Filament supply floated 80V above chassis ground for quieter operation and longer tube life.
NOBLE audiophile-grade level and balance pots. We use the nice parts in here!
MIT/MultiCap polypropylene audiophile-grade signal coupling capacitors, including two 30 uF monsters on the output stages.
Warm-up delay / MUTE button. Features and quality components usually not found on entry-level pieces.

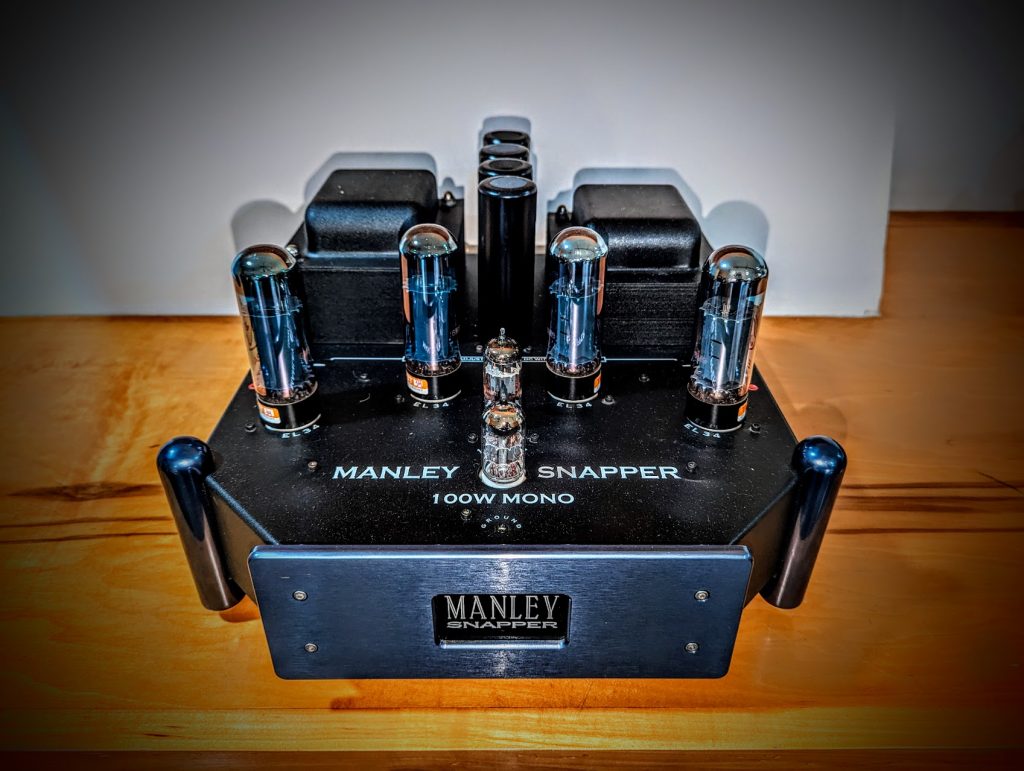

Manley Snapper Pair
Pair of amazing Snapper Tube Amps. All Brand new JJ Tubes with Blue Glass
Input Impedance RCA: 475 Kohm
Input Impedance XLR: 15 Kohm or 600 Ohm switchable
Input Sensitivity RCA: 750mV input = 110W output
Input Sensitivity XLR @ 15Kohms: 1.5 V input = 110W output
Input Sensitivity XLR @ 600 Ohms: 2.4 V input = 110W output (w/600 Ohm source)
Gain RCA: factory set for 31 dB; Range = 29.5 to 34.5dB
Gain XLR: factory set for 25 dB
Negative Feedback: factory set for 9dB of global NFB
Maximum Output Power into 5 Ohms: 110 Watts (1.5% THD @ 1kHz)
Maximum Output Power into 8 Ohms: 100 Watts (1.5% THD @ 1kHz)
Signal to Noise Ratio Ref. 1W: Typically 90 dB A-WGT 20-20K
Noise Floor: Typically 105μV = -77dBu A-WGT
Typically 388μV = -66dBu unweightedDynamic Range: 98dB
THD+noise @ 1W: less than 0.1%

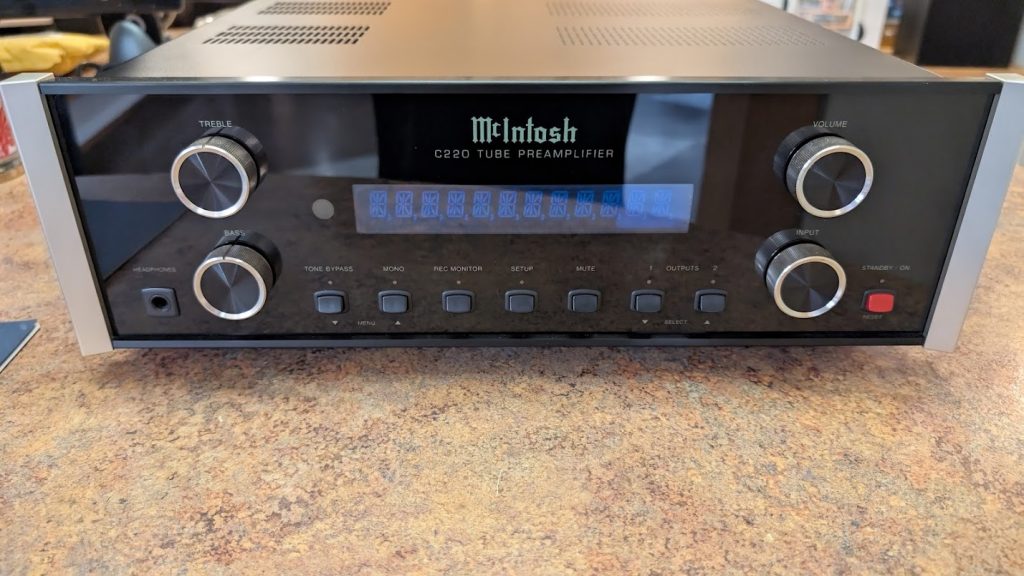

McIntosh C220 Tube Pre-Amp
Complete Input Versatility 7 Unbalanced High-Level Inputs 2 Balanced (XLR) Inputs Moving Magnet Phono Input Multi-Output Flexibility 3 Pairs of Unbalanced Outputs 2 Pairs Switched plus 1 Pair Fixed 1 Pair Balanced (XLR) Outputs 1/4” Headphone Jack Front Panel Headphone Mute Mode Hand Held System Remote External Remote Sensor Jack Fiber Optic Panel Illumination

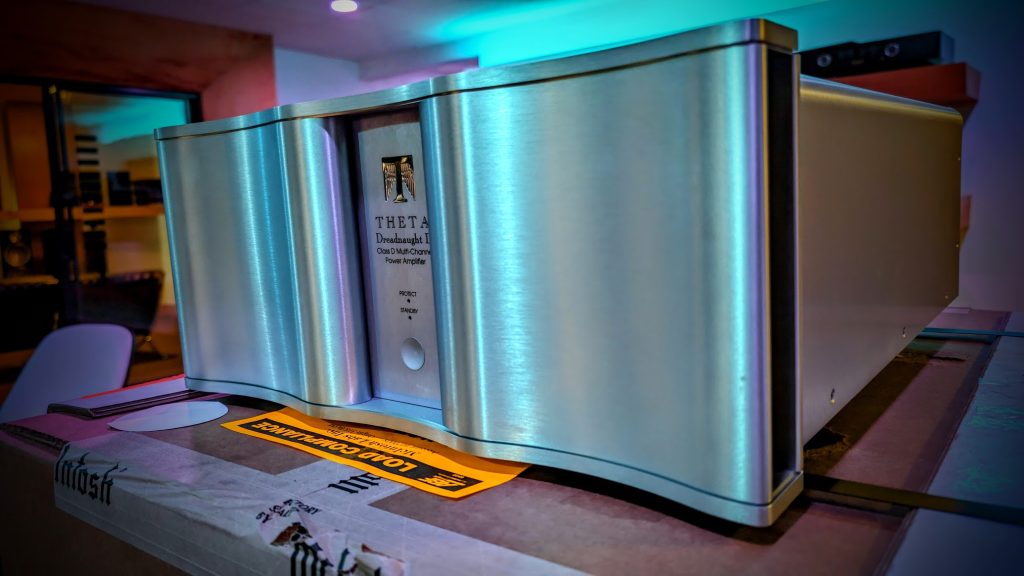

Theta Dreadnaught D
One balanced output with 5-way binding posts per channel.
Modes/Processes
Standby: Amplifier is ready to be turned on via front panel switch or remote trigger.
Overcurrent, D.C., and/or thermal protection: Amplifier will cycle.
Catastrophic D.C. or output stage failure: Amplifier will shut down.
Power Output
Mono or Stereo Module
8 ohms: 225W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz:
4 ohms: 375W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz.
2 ohms: 500W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz.
Mono Bridged Module
8 ohms: 500W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz4 ohms: 800W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz.
Frequency Response
+0, -.5 dB 0Hz to 20 kHz, load independent.
Damping Factor
Greater than 6000 at 100 Hz; Greater than 2000 at any frequency up to and including 20 kHz.
Signal to Noise Ratio
120dB referenced to rated output (A-Weighted)
Crosstalk
-85 dB

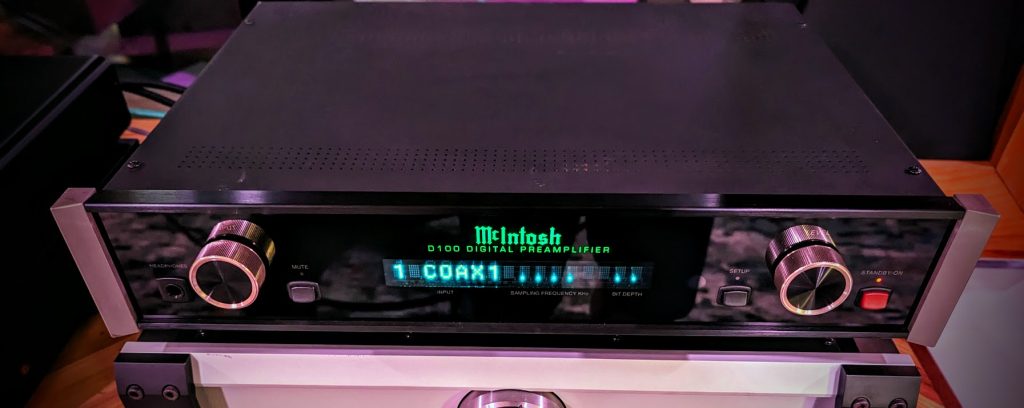

McIntosh D100 Digital Preamp
Frequency Response: +/-0.5dB from 4Hz to 20kHz +0.5/-3dB from 4Hz to 68kHz (source dependent) Total Harmonic Distortion: 0.0015% Rated Output Voltage: Fixed: 2.0 Vrms Unbalanced, 4.0 Vrms Balanced Variable: 0-8 Vrms Unbalanced, 0-16 Vrms Balanced Headphone Load Impedance: 20 to 600 Ohms Overall Dimensions (W x H x D): 17-1/2” (44.54cm) x 3-7/8” (9.8cm) x 16” (40.64cm) including the front panel, knobs and cables Weight: 13.5 lbs (6.1 kg) net, 28 lbs (12.7 kg) in shipping carton

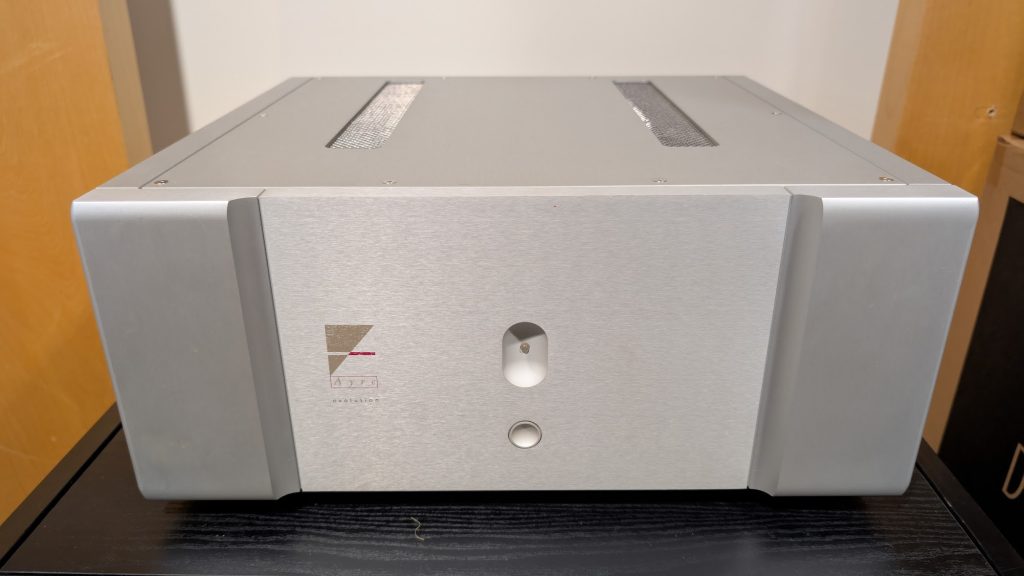

Ayre V5 Evolution Amp
Power Output
150 watts per channel continuous into 8 ohms
300 watts per channel continuous into 4 ohms
Gain
26 dB
Input Impedance
100 kohm (per phase)
Frequency Response
DC – 200 kHz
Power Consumption
10 watts in standby mode
100 watts in operating mode, no signal
Dimensions
17.5″ W x 16″ D x 7.75″ H
(45.7cm x 41cm x 18cm)
Weight
55 pounds (25 kg)

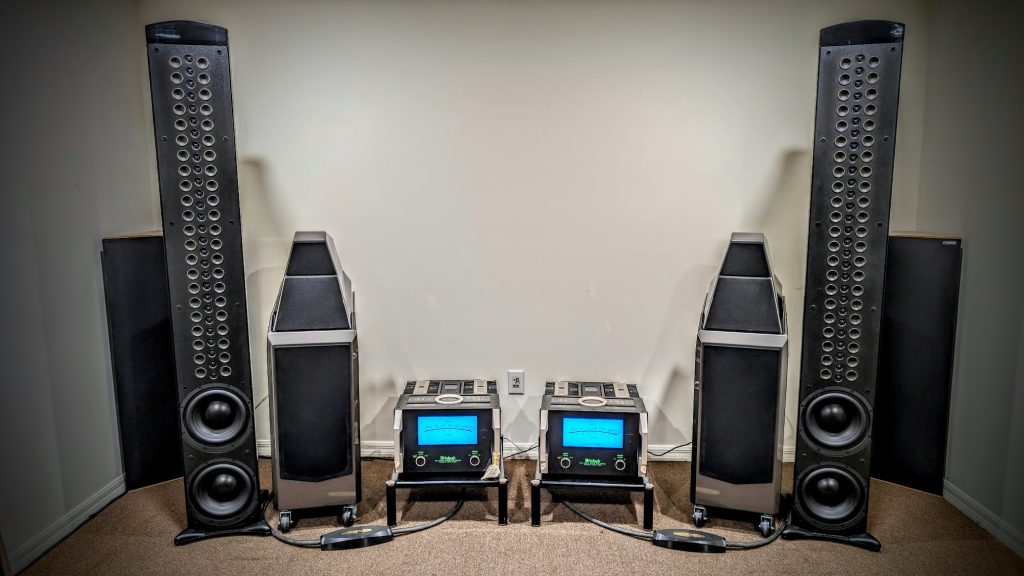

McIntosh XRT1k Speakers
1,200 Watts Power Handling Ported, Three-Way Design: Woofers: Two 10” Extended Excursion LD/HP® Midrange: Forty-four 2” Titanium Tweeters: Twenty-eight 3/4” Titanium Domes Integrated Bass for Low Frequency Extension High Efficiency Ported Design Superior Imaging Durable Extruded Aluminum Housing Three Pairs of Gold Plated Binding Posts Mounting Foot OptionsDrivers

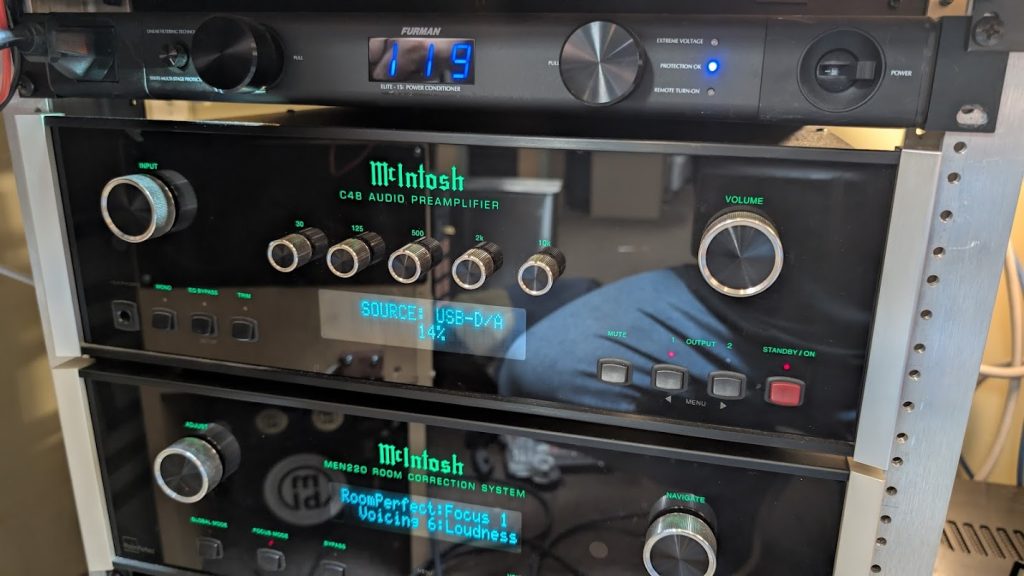

McIntosh C48
Pre-amp
■ C48 is the ultimate McIntosh preamplifier value, bridging the two worlds of conventional analog stereo source with the latest digital music sources.
■ Offers control of 8 analog sources including phono cartridges, plus 4 additional programmable digital inputs and one dedicated USB computer music input. ■ Unique features include home theater pass through, amplifier meter light control and RS232 software upgradability.
■ Five band tone controls that may be actively programmed by input, moving coil and moving magnet phono sections are fully adjustable from the remote control volume control.
